Servo valves precisely control injection speed and pressure in die casting machines by adjusting hydraulic flow in real time, ensuring consistent filling and high part quality.

In modern die casting production, precise control of injection speed and pressure directly affects part quality, defect rates, and cycle times. Servo valves play a central role in achieving this control by regulating hydraulic flow with high speed and accuracy.

This article explains the key applications of servo valves in die casting machines, including high-speed injection control, energy efficiency, contamination resistance, precision enhancement, and simplified maintenance.

Understanding these applications helps manufacturers select the right components and optimize their casting processes.

Application of servo valve in die casting machine

The high-performance valves improve efficiency, accuracy, and repeatability in the die casting process. Below are the key applications of servo valves in die casting machines.

• High-Speed Injection Control
• Energy Efficiency
• Improved Contamination Resistance
• Enhanced Precision and Accuracy
• Simplified Maintenance

High-Speed Injection Control

It is designed to provide high-speed response, which is essential for the rapid injection processes in die casting.

These valves can achieve injection speeds of up to 4 meters per second for aluminum and 8 meters per second for magnesium. This high-speed capability ensures that the molten metal fills the mold cavity quickly and uniformly, improving the quality and consistency of the castings.

Energy Efficiency

In traditional die casting machines, hydraulic systems often consume significant amounts of energy, especially during idle periods.

Servo valves, in combination with servo motors and variable pumps, can significantly reduce energy consumption. By directly controlling the flow and pressure according to the system’s needs, servo valves minimize energy losses and improve overall efficiency.

Improved Contamination Resistance

Servo valves are designed to be more resistant to contamination compared to traditional hydraulic valves.

This feature is particularly important in die casting environments, where hydraulic fluid contamination can lead to valve malfunctions and reduced performance. The improved contamination resistance of servo valves ensures more reliable operation and reduces maintenance requirements.

Enhanced Precision and Accuracy

Servo valves offer high precision and accuracy in controlling the movement of the die casting machine’s components. This precision is critical for maintaining tight tolerances during the casting process, resulting in higher-quality parts with fewer defects.

Additionally, the ability to precisely control the injection speed and pressure allows for the production of more complex and intricate castings.

Simplified Maintenance

The structure of servo valves is relatively simple, which leads to easier maintenance and fewer potential points of failure.

This simplicity not only reduces maintenance costs but also minimizes downtime, improving overall productivity.

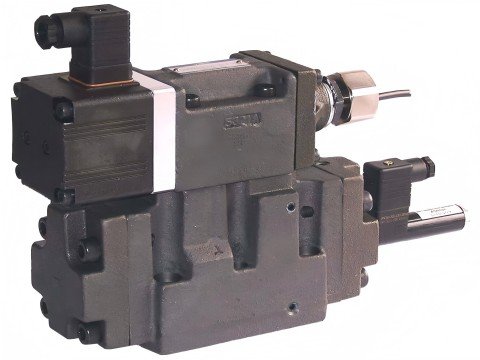

Die casting machine servo valve supplier: Haichen Machinery

Haichen Machinery is a leading supplier of high-performance servo valves specifically designed for die casting machines. Our servo valves ensure precise hydraulic control, improving efficiency, accuracy, and energy savings in cold chamber and hot chamber die casting operations.

The key advantage of servo valve:

• Precision Control:
  • Ensures accurate injection speed, pressure intensification, and clamping force for defect-free castings.
• High Response Speed:
  • Delivers fast and stable adjustments to meet dynamic die casting demands.
• Energy Efficiency:
  • Reduces power consumption compared to traditional hydraulic systems.
• Durability & Reliability:
  • Built for high-pressure, high-temperature die casting environments.
• Custom Solutions:
  • Offers tailored servo valve configurations for different die casting machine models.

HAICHEN Servo Valve Application Example

A manufacturer of automotive transmission housings experienced inconsistent part quality due to pressure fluctuations during injection. The customer installed HAICHEN servo valves on their existing 800-ton cold chamber machine to upgrade the hydraulic control system.

• Challenge: The original hydraulic valves could not maintain stable pressure during the boost phase, causing shrinkage porosity in thick sections of the housing. Scrap rates reached 12%, and cycle times were inconsistent.
• HAICHEN Solution: We supplied servo valves with 5ms response time and integrated them with the machine’s existing control system. The valves provided real-time pressure adjustment during injection and solidification.
• Result: Pressure stability improved to ±0.3% of set value. Scrap rates dropped to 3%. Cycle time variation decreased by 60%. The customer reported annual energy savings of ¥45,000 due to reduced hydraulic power consumption.

If there is any demand for servo valve, welcome to consult us.
