Die casting spray gun materials need to take into account high temperature resistance, corrosion resistance, light weight and processing performance.

And mainly use aluminum alloy, magnesium alloy, zinc alloy and special coating materials.

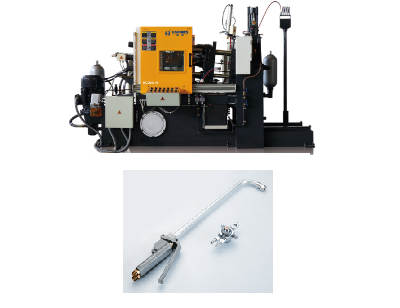

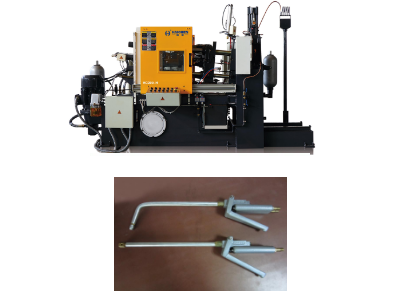

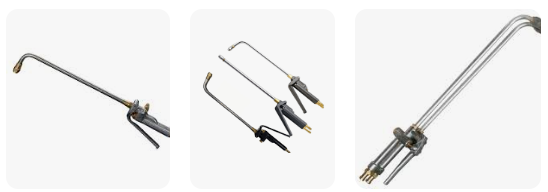

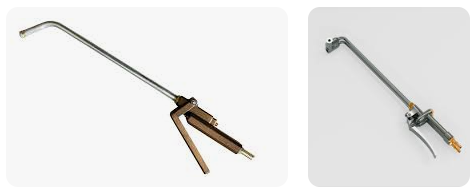

Die casting spray gun materials

Aluminum alloy

Advantages: light weight (density is only 1/3 of steel), excellent corrosion resistance.

Especially suitable for water-based coatings, good thermal conductivity good for heat dissipation in high-temperature environments.

By primarily employing 280-ton large-scale die-casting machinery, the manufacturing process subsequently performs CNC machining on internal channels.

This dual approach thereby achieves three critical outcomes: enhanced concentricity control, minimized porosity defects, and optimized structural stability.

Application scenarios: automotive industry (e.g. release agent spraying), high-temperature oil-based paint spraying.

Stainless steel

Advantages: chemical resistance (for acids and alkalis), medium abrasion resistance, high temperature resistance (up to 500°C).

Die-cast stainless steel: suitable for large-scale production and cost-effective; Hardened stainless steel: higher carbon content and more than 30% increase in wear resistance.

Application scenarios: release agent spraying in the chemical industry, Teflon coating for metal molds.

Ceramics

Advantages: Extreme abrasion resistance (5-10 times longer life than metal), high temperature resistance (1400°C), chemical inert (resistance to strong acids and alkalis).

Limitations: High brittleness, expensive processing.

Application scenarios: high-temperature coating spraying in the aerospace field, precision mold surface treatment.

Plastics (nylon, PEEK)

Advantages: Excellent corrosion resistance (suitable for strong acid environments), light weight, low cost.

Limitations: Poor temperature resistance (typically below 150°C), low mechanical strength.

Application scenarios: food-grade release agent spraying, short-term, low-cost alternatives.

Die casting spray gun core design elements

The design of the die casting spray gun requires an optimized flow channel, nozzle shape.

And cooling system to improve atomization quality, extend life, and reduce energy consumption.

Flow Channel Design

Runner length and cross-sectional shape: long runners require high-fluidity materials.

Such as magnesium alloys, and complex cross-sections require high-precision casting materials such as zinc alloys.

Surface finish: The anodizing treatment of aluminum alloy can reduce flow resistance and improve atomization uniformity.

Material adaptation

Magnesium alloys are suitable for high flow channels (e.g. APOLLO-C guns) due to their low viscosity properties.

Zinc alloys are used in multi-branch runners (e.g. X-shaped nozzles) to take advantage of their high fillability.

Co-optimization of materials and design

High Pressure Environment

Impact wear resistance poses a critical challenge in nozzle design.

Specifically, engineers employ hardened stainless steel or Nitralloy alloys.

While the magnesium alloy body demands rib reinforcement to enhance structural rigidity.

Corrosion resistance

The zinc alloy surface is chrome-plated or ceramic-coated, and is suitable for chemical release agent jetting.

Aluminium alloy anodized treatment improves durability in wet environments.

Balance between weight and strength

Magnesium alloy body Combination design of stainless steel key components such as needle valves.

The modular splicing of zinc alloy small nozzles and aluminum alloy runners reduces costs.

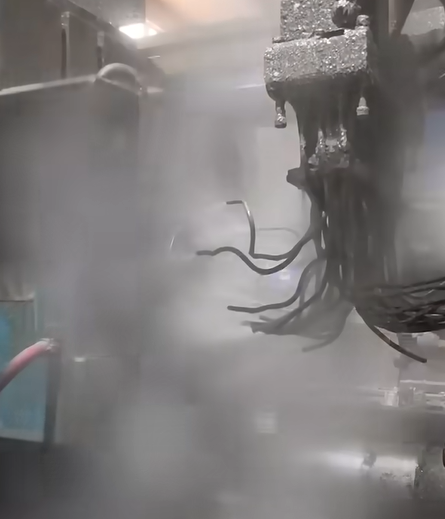

Atomization effect control

Primary atomization: the liquid is broken into coarse particles through the main atomization hole (0.8-2.5mm diameter).

Secondary atomization: The annular air flow generated by the sector control hole further refines the particles to 20-50 μm, ensuring coating adhesion.

Air pressure-flow synergistic adjustment: It is recommended that the spraying pressure of the release agent is 0.3-0.5MPa.

And the atomization air flow rate is 15-25L/min to prevent the droplets from rebounding or polymerizing.

Ergonomics

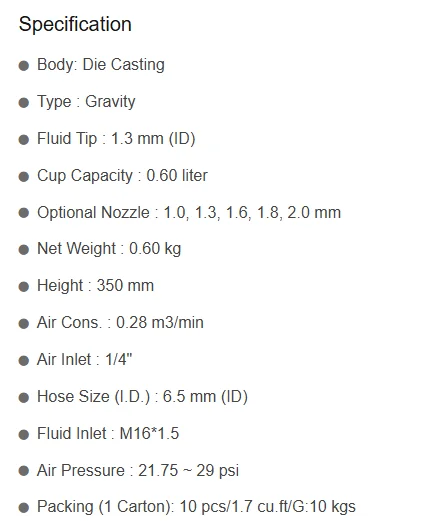

Gravity balance: For example, the RN-HVLP series adopts a die-cast aluminum body.

And the weight distribution is optimized to 800-1200g, reducing operating fatigue.

Quick change system: QCC threaded™ interface can realize the replacement of air caps in 3 seconds.

And the tapered cup connector can be disassembled and washed without tools.

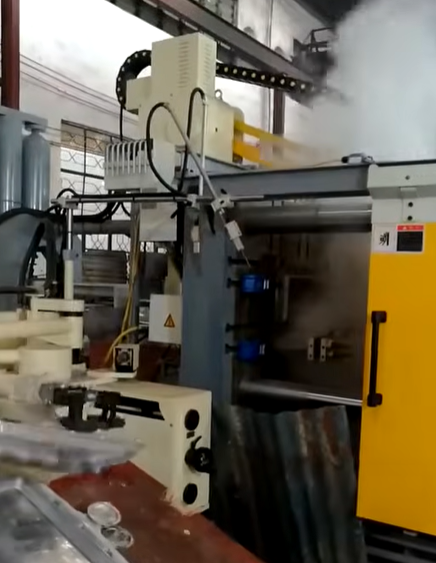

Adaptation design of process parameters

Optimal distance: 100-200mm (too close will cause rebound, too far will cause droplet polymerization).

Dynamic adjustment: Complex molds are sprayed in sections, the deep cavity is shortened to 80mm, and the flat area is extended to 250mm.

Electric heating module: For solid coatings (e.g. graphite emulsion), the integrated 500-800W heating element maintains the coating in a liquid state at 60-80°C.

To mitigate heat transfer to the handle, the thermal isolation layer integrates an alumina insulation layer within the ceramic-coated spray gun’s interior.

Maintenance method of die-casting spray gun

Post-use cleaning

The spray gun should be cleaned with solvent immediately after each use to avoid residual paint or paint clogging the passage.

And note that the pH of the solvent should be between 6-8 to prevent corrosion of the gun parts.

Disassembly & Cleaning

Care should be taken when disassembling the gun to avoid damage to the parts.

When cleaning, disassemble parts such as nozzles, gun needles, and air caps.

And thoroughly clean the interior and exterior with solvents or special detergents to ensure that there is no residue.

Lubrication Maintenance

Regularly apply oil or grease to the gun’s moving parts (e.g., threads, adjusting bolts, valve pins, etc.) to maintain its flexibility and reduce wear.

Be careful not to apply too much grease such as motor oil to the paint channel, so as not to affect the spray quality.

Seal inspection and replacement

Regularly check whether the seals, gaskets and other seals are damaged or leaking, and replace them in time if damaged.

Lubrication of the seals is also very important to prolong the service life.

Storage and protection

Spray guns should be stored in a dry, well-ventilated place to avoid moisture or dust contamination.

Make sure all parts are clean and properly assembled when storing.

Regular maintenance

Conduct a comprehensive inspection at least once a week, including checking whether the air pressure, paint passage, nozzle and other components of the spray gun are working properly.

If any problems are found, the relevant parts should be repaired or replaced in time.

Avoid incorrect operation

Do not soak the gun in the solvent for too long to avoid damaging the seals.

Avoid using hard objects to clean the gun to avoid scratching the parts.
