Heating bush solutions for die casting machines requires a combination of structural design, material science, intelligent control and precision manufacturing technology.

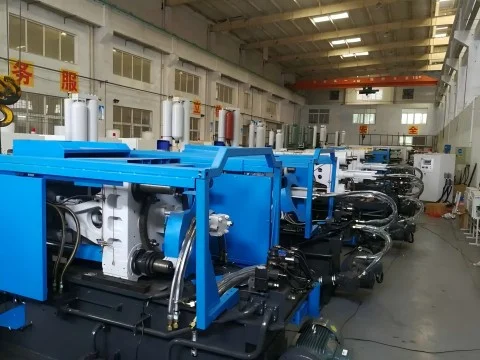

In the field of die casting production, the die casting machine, as the core equipment for metal forming, its operational stability directly determines the quality of the castings, production efficiency and cost control.

Among numerous supporting components, the Heating bush although not large in size and having a simple structure, forms a deeply integrated and collaborative relationship with the die casting machine.

It is the key component that enables the die casting machine to achieve precise temperature control of the metal liquid and ensure the stability of the forming process.

It is like the “constant-temperature guardian” of the die casting machine’s injection system, running through the entire process of die casting production.

Its performance and compatibility directly affect the overall operational efficiency of the die casting machine.

A heating bushing is a critical component used in thermal management, primarily for heat dissipation, temperature control, or heating applications.

A heat pipe is an efficient heat transfer element that typically has a much higher heat transfer efficiency than traditional heat exchangers.

Because it utilizes phase transitions such as liquid evaporation and condensation to achieve efficient heat transfer.

Function of the Heating Bush

The primary function of the Heating Bush is to provide continuous and uniform insulation and temperature control for the molten metal inside the injection pipe of the die-casting machine.

It compensates for the heat loss during the flow of the molten metal and ensures that it always remains at the optimal melting temperature suitable for the die-casting process.

It generates heat through the built-in resistance heating wire or heating rod, closely adhering to the outer wall of the injection pipe to achieve efficient heat conduction.

At the same time, it cooperates with thermocouples to monitor the temperature in real time and feed the data back to the temperature control system of the die-casting machine, forming a closed-loop regulation.

When the temperature drops below the set value, the Heating Bush automatically starts heating; when the temperature reaches the standard, it automatically stops heating.

Ensuring that the temperature fluctuation of the molten metal is kept within a very small range, providing a fundamental guarantee for the stable operation of the die-casting machine.

This temperature control coordination is not only the core value of the Heating Bush but also the indispensable key link between it and the die-casting machine.

Heating bush of different die-casting machines

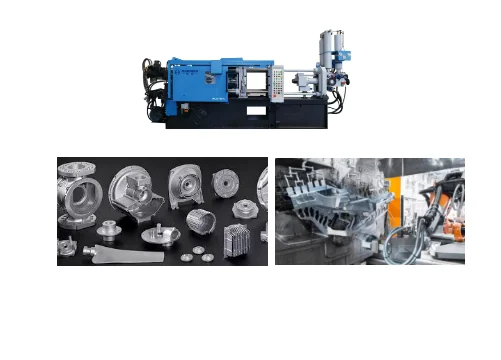

• Cold chamber die-casting machine

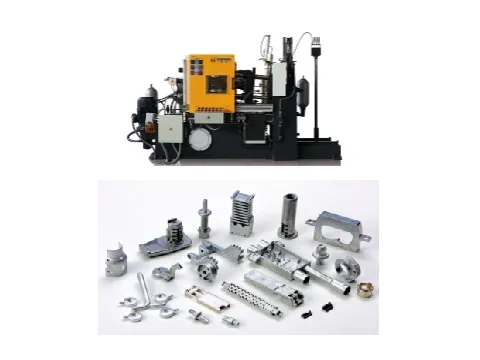

• Hot chamber die casting machine

The die casting system mainly uses the heating bushing to maintain the molten metal’s temperature in the pressure chamber or injection tube, ensuring its fluidity and filling performance.

According to the difference between cold chamber and hot chamber die casting machine.

Cold chamber die-casting machine

The chamber needs to compensate for the heat loss of molten metal by means of an external heating element (such as an electric heating rod).

For example, a cold chamber die-casting machine installs a heating rod with a round hole around the circumference of the chamber.

And combines the sealing ring and the end cap to form a closed-loop temperature control system.

Hot chamber die casting machine

The heating bushing is in direct contact with the molten metal and requires the integration of a heating element and a temperature sensor.

The system adopts a double-layer combined cover structure, and the power unit adjusts the heating power to achieve precise temperature control.

In some hot chamber die-casting machines, cross-beam energy storage optimizes the stability of the electric heating system.

Heating bush solutions innovative

• Composite Heating Structure
• Modular Combination Cover
• Intelligent control
• Material Innovation
• Ceramic coatings

Composite Heating Structure

Use three layers of concentric tubes the outer tube features high thermal conductivity to eliminate temperature differences and enhance thermal efficiency with induction coils or Caterpillar heaters.

Modular Combination Cover

Renjiezhu’s patented solution uses a symmetrical combination cover to form a cylinder and a round tube, and the gap-matched piston column dynamically adjusts the heating area.

Intelligent control

Siemens PLC system and intelligent interface automate parameter setting.

Such as the digital control module of Haichen die-casting machine.

Which can adjust the heating temperature and injection speed in real time.

In the patent of Haichen cooling system, the cooling water flow and impurities are dynamically monitored through a testing mechanism.

Including a conical filter screen and a pressure sensing module to optimize the heating-cooling synergy efficiency.

Material Innovation

Metal Substrate: Rene41 alloy outperforms traditional materials.

Such as AISI 4130 at high temperatures, and has significant resistance to plastic deformation and wear.

QAl10-4-4 aluminium bronze has been aged at 950°C and 670°C to take into account strength and toughness.

Ceramic coatings

Al₂O₃ ceramic bushings show potential in trial casting, but the problem of coating peeling still needs to be solved.

Silicon carbide (SiC) bushings need to be installed at 600°F temperatures to reduce the risk of chipping.

Maintenance and Troubleshooting of Heating bush solutions

• Bushing Installation
• Daily Maintenance
• Cleaning, Inspection & Troubleshooting
• Equipment Upgrade

Bushing Installation

Heat carbon graphite bushings to 750°F for pressing (crack-proof). Apply continuous press pressure to avoid fragmentation and inspect component integrity post-installation.

Preheat mating metal parts to 600°F (oven recommended) for silicon carbide bushing assembly, utilizing thermal expansion difference for precise interference fit.

Daily Maintenance

Standard cyclic maintenance ensures stable equipment operation.

Lubricate moving parts per 800 die-cycles; clean slides/steel belts monthly; inspect cooling pipelines yearly.

Immerse bronze alloy/PTFE bushings in lubricant during operation. Replace loose shafts promptly.

Clear slag and oxides on shutdown. Rotate crucible 120° for uniform heating and anti-corrosion.

Cleaning, Inspection & Troubleshooting

Covers periodic cleaning, inspection and common fault troubleshooting.

Clean heating layer carbon deposits and purge heating wire gaps with compressed air every 500 cycles.

Calibrate temperature probes monthly; replace if deviation exceeds ±5°C.

Uneven heating: check broken heating layers or damaged insulation causing heat leakage and replace faulty parts.

Temperature control failure: check loose thermocouple wiring or controller faults; upgrade temperature control box if needed.

Equipment Upgrade

Replace traditional electric heating with induction heating to reduce energy consumption by 25%-40%.
