Plunger rings play a critical role in the efficient operation of various mechanical systems, particularly in hydraulic and pneumatic applications.

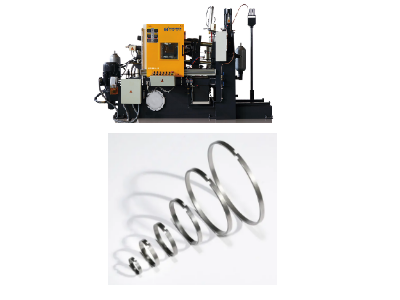

Plunger Rings are crucial components in die casting machines.

Their main function is to seal the injection sleeve and ensure that molten metal is precisely injected into the mold.

They play a central role in the die casting process, and the materials they are made of must withstand high temperatures, high pressures, and wear and tear.

Therefore, they are typically made of high-maintenance, corrosion-resistant materials (such as stainless steel, titanium alloy, beryllium copper alloy, etc.).

Their design must meet the requirements of sealing, wear resistance, and stability to ensure the production of high-quality castings.

Plunger rings function and purpose

The Plunger Rings, by sealing the gap between the injection sleeve and the piston (plunger), control the flow of molten metal, prevent leakage and ensure the quality of the castings.

Their failure (such as wear, thermal fatigue) may lead to sealing failure, metal leakage and production defects.

Plunger Rings Design

Manufacturers produce them using advanced materials and precision techniques to meet the demanding requirements of modern industries.

• Material Selection
• Dimensional Accuracy
• Surface Treatment

Material Selection

Manufacturers select high-performance materials like ASL42 stainless steel or tool steel for them to ensure strength, wear resistance, and durability in demanding environments.

Some also use copper for specific applications.

Dimensional Accuracy

Precision is paramount in the design of rings. Engineers use advanced CAD software to create detailed models that meet exact specifications.

They ensure tight tolerances to achieve a perfect fit within the assembly, minimizing leakage and maximizing efficiency.

Surface Treatment

Manufacturers heat-treat some plunger rings to achieve a hardness of 45-52 Rc, making them tough and wear-resistant.

They also offer customizable surface treatments such as gas nitriding, HVOF thermal spray coating, and PVD TIN & CRn coatings.

Plunger Rings Manufacturing Process

• Forging and Rolling
• Precision Machining
• Customization
• Quality Control

Forging and Rolling

Manufacturers use proprietary forging processes or rolled bars to produce high-strength, high-integrity plunger rings.

Precision Machining

Then,they precision grind the rings to very fine tolerances, ensuring accuracy and consistency.

Customization

Manufacturers configure plunger ring parameters according to specific requirements, such as size, material, and joint configuration.

Quality Control

They implement rigorous quality control measures throughout the manufacturing process to meet industry standards like IATF16949.

Plunger rings Advantages

• Extended Lifespan
• Improved Performance
• Customizability

Extended Lifespan

Actually,high-quality materials and advanced manufacturing processes effectively extend the lifespan of rings, thereby reducing the need for frequent replacements.

Improved Performance

The design and material of them enhance their performance in various applications, such as providing consistent compression load on sleeves and ensuring smooth, consistent material flow.

Customizability

Manufacturers can tailor rings to meet specific needs, making them suitable for different machinery and applications.

Plunger rings manufacturing process

By using forging or precision processing techniques and precision processing equipment, the products are ensured to have high precision and consistency.

Some designs (such as patented structures) may use special alloys (such as copper alloys cast under high vacuum) to enhance performance.

• Structural design
• Function optimization

Structural design

The patented design may adopt adjustable structures (such as replaceable wear rings) or optimized sealing designs to reduce wear and improve efficiency.

Function optimization

The design goals include extending equipment lifespan (such as reducing downtime), lowering production costs (such as reducing scrap rates), and enhancing production efficiency.

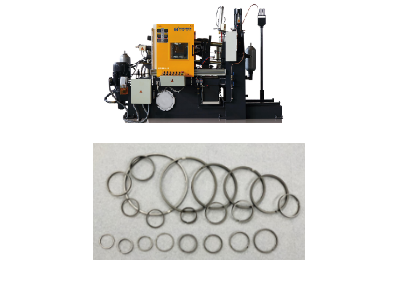

Haichen Plunger Rings supplier

Haichen is a well-known manufacturer of cold chamber, hot chamber die casting machines and components, including die casting plunger rings.

Also,our plunger rings can meet the high demands of the die casting industry, ensuring precision, durability, and efficiency in the injection process.

These rings are designed to provide effective sealing and smooth operation in high-pressure environments.

Below are some of the key features of Haichen plunger rings:

• High-Quality Materials
• Excellent Sealing Performance
• High Pressure and Temperature Resistance
• High Pressure and Temperature Resistance

High-Quality Materials

Haichen plunger rings are typically made from durable materials such as PTFE (Polytetrafluoroethylene), PEEK (Polyether Ether Ketone), or other high-performance polymers.

These materials offer excellent resistance to wear, corrosion, and chemicals, ensuring long-lasting performance.

Excellent Sealing Performance

The rings can provide a tight seal, preventing leakage of fluids in hydraulic systems.

This ensures efficient operation and minimizes downtime due to maintenance.

High Pressure and Temperature Resistance

These rings are designed to withstand high-pressure conditions and extreme temperatures, making them suitable for demanding industrial environments.

High Pressure and Temperature Resistance

These rings can withstand high-pressure conditions and extreme temperatures, making them suitable for demanding industrial environments.

Haichen plunger rings are known for their durability, reliability, and high performance in demanding industrial applications.

Their ability to withstand high pressure, temperature, and chemical exposure, combined with their low friction and wear resistance, makes them a preferred choice for sealing solutions in hydraulic systems and pumps.

We have a wealth of experience in our quality plunger rings, and can help you get the components you need quickly and with ease.

If you would like a quote for any standard or custom components or have any questions regarding our shot end component manufacturing contact us.
