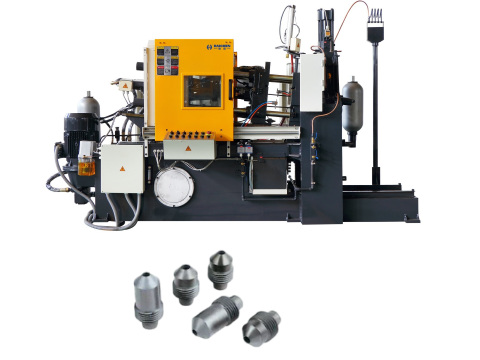

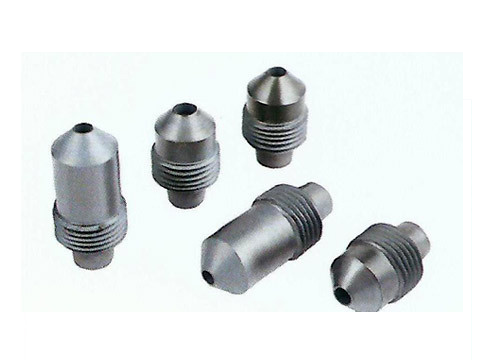

Die casting nozzle selection tips includes material selection, nozzle size and shape, Heat and surface treatment and so on.
When selecting a die casting nozzle, you need to consider multiple factors to ensure that the nozzle can meet the requirements of the die casting process and extend its service life. Here are some key selection suggestions:
1. Die casting nozzle selection tips: Material selection
The selection of nozzle material is crucial because it directly affects the heat resistance, corrosion resistance and mechanical strength of the nozzle. Common nozzle materials include high-temperature alloys (such as tool steel or nickel-based super alloys), zirconia ceramics and non-metallic materials (such as graphite). These materials have excellent thermal and chemical stability, which can prevent premature solidification and flow problems of molten metal. In addition, for some special applications, it can also select stainless steel or nylon materials.
2. Die casting nozzle selection tips: Nozzle Size and Shape
The diameter and shape of the nozzle need to be selected according to the size, weight and material properties of the die casting. A larger nozzle diameter can reduce pressure loss, but may increase cost and maintenance difficulty. Common nozzle shapes include flat nozzles and extended flat nozzles, which show good performance under different conditions.
3. Die casting nozzle selection tips: Heat treatment and surface treatment
The oxide layer on the nozzle surface will affect its performance. During the die casting process, the nozzle surface will oxidize to form an oxide layer with a high zinc oxide content, which may lead to the loss of alloy components. Therefore, when designing and selecting, we should considerthe heat treatment and surface treatment process of the nozzle. Thus it can improve its durability and anti-wear performance.
4. Matching of nozzle inlet and mold design
The design of nozzle inlet needs to match the layout of mold cavity and injection system. The position and size of nozzle inlet directly affect the flow path and pressure distribution of molten metal. When designing, ensure that the distance between nozzle inlet and mold cavity is appropriate and avoid sharp corners or stress concentration areas.
5. Cooling system and temperature control
The cooling system design of the nozzle has an important influence on the stability of the die casting process and the product quality. A reasonable cooling system can extend the service life of the nozzle and reduce thermal stress.When selecting a nozzle, its compatibility with the cooling system should be considered.
6. Application environment and chemical properties
If the die casting involves a corrosive environment (such as pickling or phosphating), it is necessary to select a corrosion-resistant nozzle material such as stainless steel or nickel-based alloy. In addition, for high vacuum or semi-solid die casting processes, the selection of nozzle materials should consider its impact on fluidity and mold life.
7. Cost and Maintenance
The cost and maintenance frequency of the nozzle should be considered comprehensively, provided that the performance requirements are met. Special materials, although more expensive, can significantly extend service life, thereby reducing long-term operating costs.
