What is the difference between die casting and metal forging? Die casting injects molten metal into a mold cavity under high pressure, capturing fine details and thin walls. Forging applies compressive force to solid metal to shape it plastically, aligning grain structure for superior strength. These two processes represent fundamentally different approaches to metal forming, and your choice directly affects part strength, design complexity, production cost, and lead time.
This guide compares die casting and forging across multiple dimensions to help you make an informed sourcing decision.
Process Fundamentals: How Each Method Works
Die casting forces molten metal—typically aluminum, zinc, or magnesium alloys—into a steel mold cavity under high pressure and high speed. The metal solidifies rapidly inside the die, and the machine ejects the finished part. Cycle times run 60-120 seconds for aluminum and 3-10 seconds for zinc.
Forging heats a solid billet of metal—usually steel or specific aluminum alloys—and hammers or presses it into shape. The metal remains solid throughout the process. Physical deformation aligns the internal grain structure to follow the contours of the part. Forging requires multiple forming steps and longer cycle times.
What this means for you: Die casting works with liquid metal; forging works with solid metal. This fundamental difference drives all other comparisons between the two processes.
Material Compatibility and Alloy Selection
Die casting materials. Die casting primarily uses non-ferrous casting alloys—aluminum, zinc, magnesium, and copper. Common die casting grades include A380, ADC12, and A356 for aluminum, and Zamak series for zinc. These alloys offer excellent fluidity and castability but cannot be forged.
Forging materials. Forging works with wrought alloys, including carbon steel, alloy steel, stainless steel, titanium, aluminum, and copper. Forged aluminum requires special wrought grades like 6061 or 7075. Forgings can also be made from iron, steel, and titanium that are not possible in die casting due to melt temperature limitations.
What this means for you: Your material choice determines which process is even possible. If you need steel or titanium parts, forging is your only option between these two. If you work with aluminum, magnesium, or zinc, both processes are available but use different alloy families.
Mechanical Properties: Strength, Fatigue, and Integrity
Forging delivers superior strength. Forging refines the grain structure through plastic deformation, producing parts with exceptional tensile strength, impact resistance, and zero internal porosity. Forged aluminum achieves tensile strength of 350-550 MPa, with 7075-T6 reaching 570 MPa. Carbon steel forgings reach 400-600 MPa, and alloy steel forgings achieve 800-1500 MPa. Forged metal parts are less porous and have better internal integrity. The recrystallization and grain refinement at the atomic level add strength—forged parts are denser and mechanically stronger, able to handle impact force and wear very well.

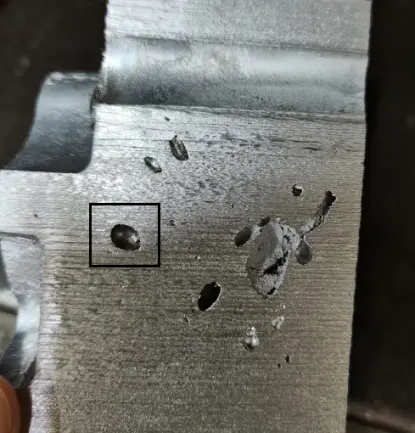

Die casting offers moderate strength. Die casting tensile strength for aluminum ranges 280-320 MPa, with zinc at 280-380 MPa. A356 after T6 heat treatment reaches 280 MPa. However, die cast parts have lower mechanical strength compared to forged parts. As the liquid metal rapidly cools and shrinks, micro-porosity (internal voids) occurs. This porosity reduces strength and fatigue life.
What this means for you: If your component faces relentless, heavy-duty dynamic fatigue or extreme impact loads, forging wins. If strength requirements are moderate and weight reduction matters more, die casting remains a viable choice.
Design Complexity and Geometric Capability
Die casting excels at complex geometries. Die casting can produce parts with thin walls (0.8-1.2mm for aluminum, 0.5mm for zinc), internal cavities, deep coring, water jackets, and intricate details. The process captures fine features and undercuts without stress. Die cast parts can be much more refined and defined than forged parts. High dimensional accuracy reaches ±0.05-0.1mm with surface finish Ra1.6-3.2μm.
Forging handles simple shapes. Forging has very low geometric complexity—it cannot forge internal cavities. The process forms relatively simple shapes with thicker walls. Forged parts typically have heavy or blocky shapes. Dimensional accuracy runs ±0.1-0.5mm and requires later machining. Secondary machining required is very high, with heavy material removal.
What this means for you: Choose die casting when your part requires thin walls, internal features, or complex geometries. Choose forging when your part has a simple shape and strength is the priority.
Tooling Costs and Production Economics
Die casting requires advanced tooling costing $20,000 to $100,000+, depending on complexity. I is generally less expensive than forge dies because dies withstand much lower forces during manufacture. Die casting molds also last longer compared to forging tools. Mold life for aluminum runs 80,000-150,000 cycles, and zinc reaches 300,000-500,000 cycles.
Forging dies are expensive to produce and must endure high compressive forces and temperatures. Forging dies cost $2,000 to $20,000+ depending on part complexity. Mold life runs 20,000-50,000 for hot forging and 100,000-500,000 for cold forging. The higher tooling cost reflects the more demanding operating conditions.
Production volume economics. Die casting achieves high cost-efficiency for production runs over 5,000 units. Forging involves intensive forming and post-machining, which increases costs and limits economic viability to lower volumes. Die casting reduces unit cost for high-volume production, while forging remains more cost-effective at medium volumes.
What this means for you: For high-volume production of complex parts, die casting offers the lowest per-unit cost. For lower volumes or simple shapes where strength is critical, forging may be the more economical choice despite higher tooling costs.
Production Speed and Efficiency
Die casting delivers fast cycle times. Die casting produces parts at faster speeds and greater volumes. Cycle times run 60-120 seconds for aluminum and 3-10 seconds for zinc. Production speed is very fast, ideal for high-volume OEMs.
Forging operates more slowly. Forging requires multiple forming steps and longer cycle times. Production speed is slower. Material utilization runs 70-90%, lower than die casting’s 90%+.
What this means for you: If you need high-volume output and fast production rates, die casting significantly outperforms forging.
Surface Finish and Post-Processing
Die casting delivers excellent as-cast surfaces. Die casting produces excellent quality material with as-cast surfaces having tight tolerances and good dimensional accuracy. Surface finish Ra1.6-3.2μm requires minimal post-processing. Secondary machining required is low to moderate due to near-net shape capability.
Forging requires more finishing. Forged metal parts have rougher surface finishes and may need extra finishing for cosmetic surfaces. Forged parts require very high secondary machining with heavy material removal.
What this means for you: Die casting reduces or eliminates post-machining costs. Forging adds significant secondary operation expenses.
Automotive Applications: Where Each Process Dominates
Die casting dominates EV and lightweight applications. Die casting accounts for more than 70% of the aluminum used in automobile drive systems. Automotive applications include EV motor housings, battery trays, transmission cases, electric motor housings, transmission covers, and electronic module cases. In the EV sector, thermal management is the bottleneck—a modern EV battery case or inverter housing requires complex, integrated cooling channels that only die casting can produce economically. Die casting enables component consolidation, reducing assembly steps and weight.
Forging remains the choice for high-stress components. Internal combustion engine components like connecting rods, camshafts, and transmission gears require the continuous, unbroken grain flow that only forging provides. Similarly, high-stress suspension components in heavy-duty trucks often rely on forged aluminum or steel. Forged parts deliver the absolute yield strength that die casting simply cannot match.
What this means for you: If you supply EV components or lightweight structural parts, die casting is the dominant choice. If you supply high-stress drivetrain or suspension components, forging remains essential.
Comparison Summary
| Factor | Die Casting | Forging |
|---|---|---|
| Process | Molten metal injected into mold | Solid metal deformed by pressure |
| Materials | Aluminum, zinc, magnesium, copper alloys | Steel, titanium, wrought aluminum alloys |
| Tensile Strength | 280-380 MPa (aluminum/zinc) | 350-570 MPa (aluminum), 400-1500 MPa (steel) |
| Design Complexity | Exceptional—thin walls, internal cavities | Very low—simple shapes only |
| Dimensional Tolerance | ±0.05-0.1mm | ±0.1-0.5mm |
| Surface Finish | Ra1.6-3.2μm, minimal finishing | Rougher, requires machining |
| Tooling Cost | $20,000-$100,000+ | $2,000-$20,000+ |
| Tool Life | 80,000-500,000 cycles | 20,000-500,000 cycles |
| Production Speed | Very fast (seconds per part) | Slow (multiple steps) |
| Best Volume | High volume (5,000+ units) | Low to medium volume |
| Material Utilization | 90%+ | 70-90% |
More you would need to ask
- “What process do you recommend for my part geometry and strength requirements?” – The answer should reflect your specific application, not just what they offer.
- “What alloy do you recommend, and why?” – Different alloys suit different processes and applications.
- “What is the expected tool life and replacement cost?” – Factor this into your total cost calculation.
- “What is your lead time for tooling and production?” – Forging typically requires longer lead times.
- “Can you provide mechanical property test data for my alloy?” – Verify that the process delivers the strength you need.
- “What quality control measures do you use?” – Look for non-destructive testing and dimensional inspection.
- “Can you show me case studies from similar applications?” – Proven results matter more than promises.
Haichen’s Die Casting Solutions

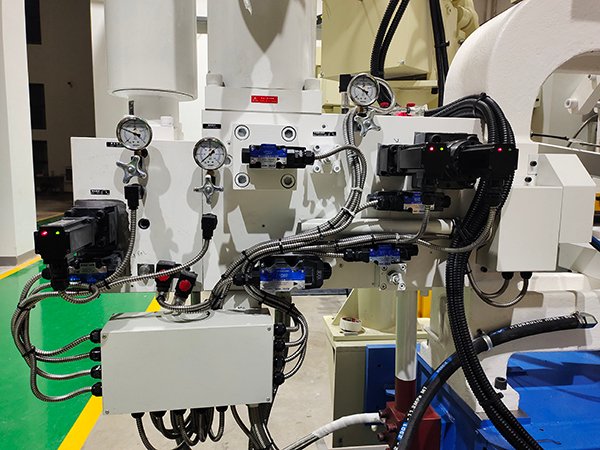

Haichen Machinery manufactures cold chamber and hot chamber die casting machines that deliver high precision, complex geometries, and high-volume production efficiency. Our machines handle aluminum, zinc, magnesium, and copper alloys. Haichen’s large-tonnage cold die-casting machines provide proven solutions for automotive components, road infrastructure, and industrial parts.
Haichen’s die casting technology achieves dimensional accuracy of ±0.05-0.1mm and surface finish Ra1.6-3.2μm with material utilization over 90%. Our machines support the complex geometries that modern EV and lightweight applications demand—thin walls, internal cavities, and integrated cooling channels.
While forging delivers superior strength for critical load-bearing components, die casting offers unmatched design flexibility, production speed, and cost efficiency for high-volume manufacturing. Haichen helps buyers evaluate their part requirements and select the optimal process for their specific needs.
Need help deciding between die casting and forging for your project? Contact Haichen Machinery. We will analyze your part geometry, strength requirements, and production targets to recommend the optimal manufacturing solution for your specific needs.
