Because the design and efficiency of the cooling system directly affects the quality of die castings, production speed and mold life.

Controlling cooling rates is crucial for the success of the metal casting process.

Whether you’re working with aluminum metal casting, stainless steel casting, or other cast metals, the cooling rate directly affects the mechanical properties, dimensional accuracy, and overall quality of the final product.

For metal casting suppliers, understanding and managing the cooling process ensures fewer defects, greater strength and durability, and improved production efficiency.

By implementing the right cooling strategies, manufacturers can produce high-quality cast metal products that meet the demanding requirements of various industries.

Cooling Solution For Die Casting

Cooling for die casting is a key parameter, as it affects both quality and efficiency.

Once molten metal is injected into a die, proper cooling ensures uniformity in the solidification process to minimize warping or porosity flaws.

Effective cooling methods include water or air circulation, heat sinks, and conformal cooling channels, which control die temperature and acceleration of the cycles.

Improved quality for the product is thus accompanied by improvement in die life as well as overall productivity.

Common Cooling Problems in die-casting

• Shrinkage Porosity
• Thermal Stresses
• Effect on the Final Product from the Improper Cooling

Cooling is the last step of die casting, but it has its problems, which can affect product quality and mold life. Some of the most common of these problems are:

Shrinkage Porosity

As the molten metal cools down and solidifies, it shrinks. This could result in shrinkage porosity if cooling is not uniform or controlled.

This results in small cavities or internal voids that can weaken the structural integrity of the product, thereby making low-quality parts that could eventually fail when under stress.

Thermal Stresses

This may lead to uneven cooling, and therefore, thermal stresses in the die and the cast part.

The inhomogeneous contractions at various parts may lead to warping, cracking, and even premature failure of the mold.

To avoid such cooling, therefore, uniform cooling across the mold is maintained.

If the cooling is poor, then it will create excessive heating in the mold.

As a consequence, it causes rapid acceleration in wearing down.

Gradually, it contributes to distortion in the mold, low dimensional accuracy, and more maintenance or replacement.

Proper cooling maintains the performance for many cycles as well as increases the lifespan of a mold.

Effect on the Final Product from the Improper Cooling

The final product will suffer from various defects due to improper cooling management such as warped parts, cracks, poor surface finish, and internal voids.

All these problems usually lead to decreased mechanical properties and appearance of the cast part, thus requiring rework or rejection, therefore impacting production time and cost.

Inconsistent cooling can also increase cycle times, again reducing overall efficiency.

The importance of cooling in die casting

• Ensuring Proper Solidification
• Reducing Cycle Time
• Extending Die Life
• Enhancing Product Quality
• Controlling Thermal Environment
• Reducing Environmental Impact

Cooling is a critical component of the die casting process. It ensures proper solidification, reduces cycle time, extends die life, enhances product quality, and helps to maintain a stable and efficient production environment.

Ensuring Proper Solidification

Cooling helps the molten metal solidify quickly and uniformly. This is crucial to prevent defects such as shrinkage porosity and warping.

When the metal cools too slowly, it may not fill the mold cavity completely, leading to incomplete or defective parts.

By controlling the cooling rate, manufacturers can ensure that the casting achieves the desired shape and dimensions.

Reducing Cycle Time

Effective cooling significantly reduces the cycle time in die casting. Faster cooling means that the casting can be ejected from the mold more quickly, allowing for more parts to be produced in a given time period.

This increased production rate enhances overall manufacturing efficiency and productivity.

Extending Die Life

The die, or mold, used in die casting is subjected to high temperatures during the process.

Proper cooling helps to manage these temperatures and reduce thermal stress on the die.

By minimizing thermal stress, the die can last longer, reducing maintenance costs and downtime.

This is particularly important in high-volume production runs where consistent quality and reliability are essential.

Enhancing Product Quality

Uniform cooling leads to better product quality. It helps to minimize defects such as porosity, cracks, and distortions, resulting in stronger and more durable castings.

Additionally, precise cooling can improve the surface finish of the casting, meeting higher industry standards.

Controlling Thermal Environment

Cooling systems help to maintain a consistent thermal environment within the die casting machine.

This is important for the overall stability and accuracy of the process.

By keeping the mold and the surrounding equipment at a controlled temperature, manufacturers can avoid issues such as overheating and equipment failure.

Reducing Environmental Impact

Advanced cooling systems can also contribute to sustainability goals. Efficient cooling reduces energy consumption and waste by minimizing defects and optimizing cycle times.

This not only lowers operational costs but also helps to reduce the environmental footprint of the manufacturing process.

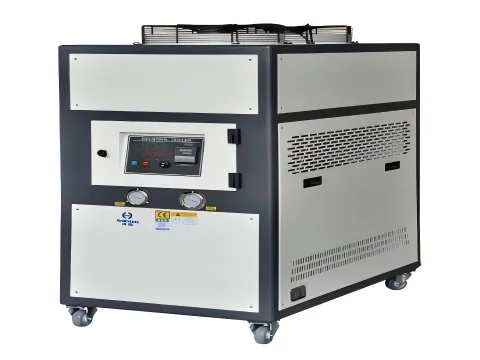

Haichen die casting cooling system

Haichen die casting cooling system is designed to optimize the casting process by ensuring efficient heat management, precise temperature control, and high-quality production.

Here are the key features and benefits of Haichen’s cooling system:

• Intelligent Temperature Control and Monitoring
• Efficient Cooling Channel Design
• Structural Optimization and Dynamic Analysis

Intelligent Temperature Control and Monitoring

Haichen’s cold chamber and hot chamber die casting machines are equipped with thermocouples to monitor mold temperature in real time.

The built-in intelligent system compares the actual temperature with the set value and automatically adjusts the cooling water solenoid valves.

Efficient Cooling Channel Design

Haichen uses a multi-channel cooling system with Φ10 mm cooling water channels distributed along the cavity length.

These channels are strategically placed to ensure uniform cooling, especially in thick-walled castings.

Structural Optimization and Dynamic Analysis

Finite element analysis is conducted during the design stage to enhance the cooling effect and reduce thermal deformation.
